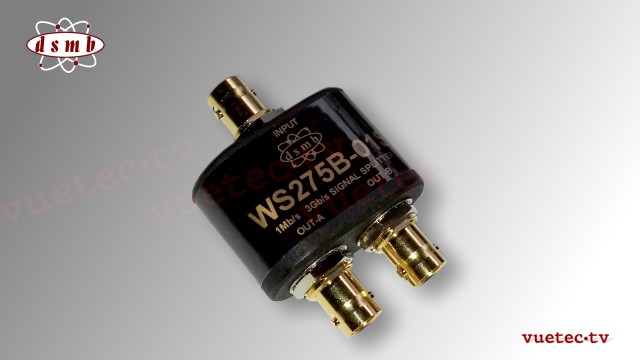

PROTON WS275B - Digital Video passiver Splitter 1 auf 2

169,00 € *

zzgl. Umsatzsteuer zzgl. Versandkosten

lagernd, Lieferzeit je nach Versandart 1-3 Werktage

WS275B-01S - Passiver Splitter 1 auf 2 für 3G-HDSDI Signale The WS275B-01S is a single... mehr

WS275B-01S - Passiver Splitter 1 auf 2 für 3G-HDSDI Signale

The WS275B-01S is a single channel, standalone unit, that is used as a 3G-SDI passive splitter. Due to its wideband design the unit is also compatible with SD-SDI, HD-SDI and ASI digital video signals. It can also be used in AES3 and MADI digital audio applications.

Highlights:

  • Conveniently split a single source into two outputs
  • High performance design with minimal insertion loss
  • Supports all 3G, HD, SD SDI Formats
  • Compatible with ASI Video
  • Compatible with both AES3 and MADI Digital Audio Formats
  • Passive Device
  • Fault tolerant operation
  • Ultra-Compact and Lightweight
  • Standalone Unit

Description:

The Proton WS275B 3G-SDI Passive Splitter conveniently splits a single source into two signals for distribution with minimal loss. Since it is a passive device there is no requirement for power.

The WS275B-01S 3G-SDI Passive Splitter has been designed with reliability at the forefront for critical applications. The 3G-SDI Passive Splitter is fault tolerant due to the high isolation between the outputs, this allows an open-circuit, short-circuit or incorrect termination on one output to have almost no effect on the quality of the remaining output. This complex transformer arrangement also minimizes output and insertion losses and therefore outperforms simple resistor splitters.

The WS275B-01S 3G-SDI Passive Splitter support all of the SMPTE and AES transmission rates between 1Mb/s and 2.97Gb/s and is therefore compatible with all digital video ASI and SDI formats including 3G-SDI, HD-SDI and SD-SDI along with both AES3 and MADI digital audio formats, and offers a cost effective alternative to powered distribution amplifiers. The WS275B-01S is housed in a compact standalone unit.

Bauform: Inline
Funktion: passiver Splitter
Quellen + Senken: 1x2
Inputs: SDI
Outputs: SDI
Anschluß: BNC 75 Ohms
Standards: 720p, 1080i, 1080p, 1080psf, SD
Technical Specification: Channels: 1 Impedance: 75Ω ± 2%, unbalanced... Technische Daten

Technical Specification:

Channels: 1
Impedance: 75Ω ± 2%, unbalanced
Bandwidth: 1Mb/s to 3Gb/s
Return Loss: <15dB 270Mhz to 1.5Gb/s, <10dB at 3GHz
Insertion Loss: <3.5dB
Port Isolation: >22dB
Size: 20mm[0.85″] x 50mm[2″] x 30mm[1.2″] excluding connectors
Weight: 50g[1.7oz]
Environmental: -25 to +55 deg C [32 to 131 deg F], 5%-95% non-condensing
EN55103-1, EN55103, EN6095, FCC part 15
Eigenschaften: "PROTON WS275B - Digital Video passiver Splitter 1 auf 2"
Bauform: Inline
Funktion: passiver Splitter
Quellen + Senken: 1x2
Inputs: SDI
Outputs: SDI
Anschluß: BNC 75 Ohms
Standards: 720p, 1080i, 1080p, 1080psf, SD

DSMB Technology ist ein Hersteller von fortschrittlichen Audio-, Video- und Datengeräten für die Bereiche Broadcast, Produktion, Film, Live-Performance, Medizin und Sicherheit. Er ist spezialisiert auf das Design und die Herstellung von hochwertigen professionellen Produkten, unter Verwendung modernster Technologie mit höchster Zuverlässigkeit. Zu den Highlights gehören SDI-Splitter, Trenntransformatoren oder Leitungssimulatoren.

vuetec.tv UG fungiert als exklusiver Vertrieb für den deutschsprachigen Raum.
