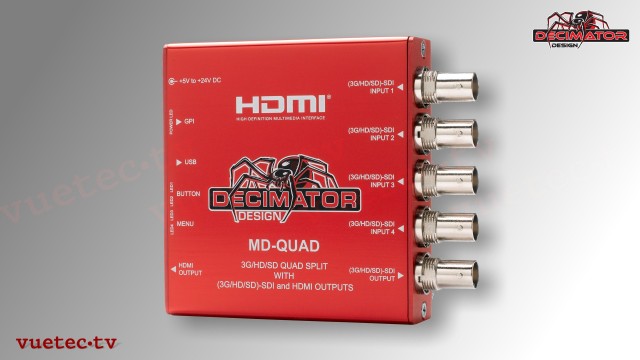

Decimator MD-Quad V3 - 4x SDI zu SDI und HDMI

1.250,00 € *1

zzgl. Umsatzsteuer zzgl. Versandkosten

Nicht am Lager! Ware wird nachbestellt. Zulieferung je nach Verfügbarkeit beim Hersteller ca. 5-30 Werktage.

  • DD-MDQUAD
  • MD-QUAD
  • 1,00 kg
Decimator (Redbyte) Design - MD-QUAD V3 MINIATURE (3G/HD/SD)-SDI Quad Split with... mehr

Decimator (Redbyte) Design - MD-QUAD V3

MINIATURE (3G/HD/SD)-SDI Quad Split with (3G/HD/SD)-SDI and HDMI Outputs

Product Features

Low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split or 4 to 1 input multiplexer
• Selectable output format in Quad-Split mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• 8-Channel Audio metering for each quadrant with:
- The first two audio groups individually selectable
- Vertical or Horizontal Bars
- AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment

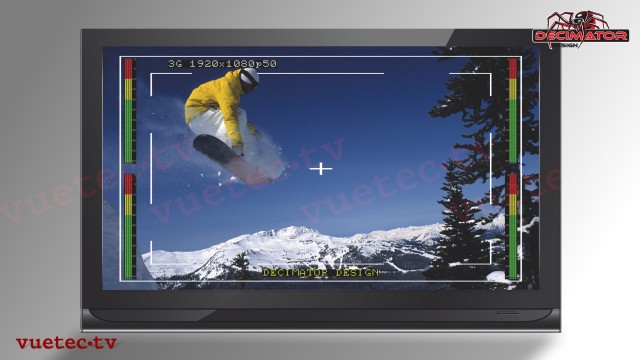

• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant

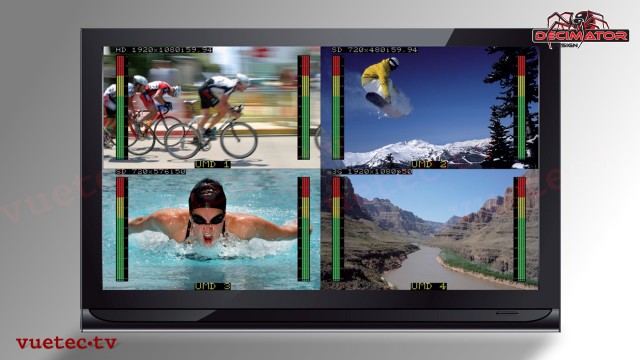

• All 4 inputs can be displayed simultaneously on a single output
• Pass-Through mode allowing any of the 4 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• On-Screen 16 character IDs (UMDs) for each input
• A single tallies for each input is available from the GPI
• NEW! In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
• NEW! On-screen audio id pop-up when selection audio source in Quad-Split mode
• NEW! On-screen display pop-up when using the rotary to allow for use when without a PC
• NEW! Professional 3G/HD/SD Test Pattern Generator featuring 54 Test Patterns including Luma and Chroma Zone-plates
• NEW! Audio Tone Generator
• An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
• USB port for control and updates
• GPI on RJ-45 for remote switching
• Locking DC Power Socket

The following is included with the unit:

Power Supply, HDMI Cable, USB Cable and Mounting Bracket

Funktion: MultiViewer, SDI zu HDMI
Bauform: Mini-Converter
Steuerung: DIP Switch, GPI/O, USB
Quellen + Senken: 4x1
Inputs: SDI
Outputs: Audio analog, HDMI, SDI, Video analog
Anschluß: BNC 75 Ohms, HDMI-A, RCA Cinch
Power: 5 ~ 24 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD
Technical Specification VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s •... Technische Daten

Technical Specification

VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s
• 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
• 625i50
• 525i59.94
INPUTS

(3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
• USB for control and updates
• GPI on RJ-45

OUTPUTS 1 x (3G/HD/SD)-SDI Active Reclocked
1x HDMI
MENU OPTIONS • Input status for all 4 inputs
• Output format
• Output selection of Quad Split or input 1, 2, 3 or 4.
• Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
• Individual aspect format for each input of Same as output, Letter-box or Pillar-box
• Border Enable
• Quad split mode reference of either Free-run or input 1
• Enables for On-Screen Overlays
• Basic Audio Meter control
LED STATUS • Power
• 4 x Signal lock and rate
POWER • +5V to +24V DC, 6 Watts
• Positive Centre Pin
DIMENSIONS 90 mm x 94 mm x 23 mm
Eigenschaften: "Decimator MD-Quad V3 - 4x SDI zu SDI und HDMI"
Funktion: MultiViewer, SDI zu HDMI
Bauform: Mini-Converter
Steuerung: DIP Switch, GPI/O, USB
Quellen + Senken: 4x1
Inputs: SDI
Outputs: Audio analog, HDMI, SDI, Video analog
Anschluß: BNC 75 Ohms, HDMI-A, RCA Cinch
Power: 5 ~ 24 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD

Decimator Design PYT LTD mit Basis Australien ist ein seit Jahren im Broadcast Markt bekannter Entwickler und Hersteller von kostengünstigen und leistungsstarken Signalwandlern. Cross-, Up- und Down-Konversion aber auch MultiView Processing sind die Key-Technologien der Australier.
