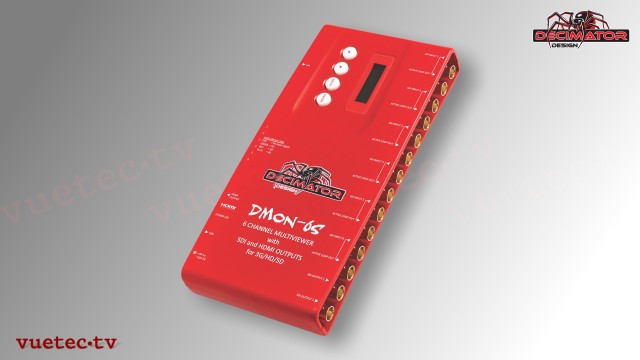

Decimator DMON-6S - 6x SDI zu SDI und HDMI Multiviewer

590,00 € *1

zzgl. Umsatzsteuer zzgl. Versandkosten

Lieferzeit 3-8 AT (Werktage)

  • DD-DMON6S
  • DMON6S
  • 2,00 kg
Decimator Design - DMON-6S (3G/HD/SD)-SDI to HDMI Multiviewer and Converter Features Low... mehr

Decimator Design - DMON-6S

(3G/HD/SD)-SDI to HDMI Multiviewer and Converter

Features

  • Low cost miniature (3G/HD/SD)-SDI 1 to 6 Multi-Viewer or 6 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • The DMON series is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

- RS422/485 on 37-pin D-SUB for Dynamic UMD and Tallies using TSL protocol
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable

Funktion: Audio Levelmeter, MultiViewer, SDI zu HDMI, Tally, UMD
Bauform: Mini-Converter
Steuerung: lokal, USB
Quellen + Senken: 6x1
Inputs: SDI
Outputs: HDMI, SDI
Anschluß: BNC 75 Ohms, HDMI-C
Power: 5 ~ 32 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD
SPECIFICATION VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz... Technische Daten

SPECIFICATION

VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s
• 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
• 625i50
• 525i59.94
HDMI OUTPUT FORMATS • 1080p@60/59.94/50Hz
• 1080i@60/59.94/50Hz
• 1080p@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25
• 625i50
• 525i59.94
INPUTS • 6 x (3G/HD/SD)-SDI Inputs
• Input Equalization > 100M using Belden 1694A
• USB for control and updates
OUTPUTS • HDMI Type A
• 2 x SDI (3G/HD/SD)-SDI
LCD / BUTTON
MENU OPTIONS
• HDMI output type
• Output Select
• Multi-Viewer Output Format
• Multi-Viewer Number of Windows
• Multi-Viewer Layout
• Multi-Viewer Audio Source
• Multi-Viewer Reference
• Full Screen is Scaled
• Input Routing
• GPI mode
• Setup
POWER • +5V to +32V DC, 6 Watts
• Positive Centre Pin
DIMENSIONS 220 mm x 103 mm x 30 mm
Eigenschaften: "Decimator DMON-6S - 6x SDI zu SDI und HDMI Multiviewer"
Funktion: Audio Levelmeter, MultiViewer, SDI zu HDMI, Tally, UMD
Bauform: Mini-Converter
Steuerung: lokal, USB
Quellen + Senken: 6x1
Inputs: SDI
Outputs: HDMI, SDI
Anschluß: BNC 75 Ohms, HDMI-C
Power: 5 ~ 32 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD

Decimator Design PYT LTD mit Basis Australien ist ein seit Jahren im Broadcast Markt bekannter Entwickler und Hersteller von kostengünstigen und leistungsstarken Signalwandlern. Cross-, Up- und Down-Konversion aber auch MultiView Processing sind die Key-Technologien der Australier.
