DISCONTINUED
Mini TRX+ Timecode Generator
Mini TRX+ Timecode Generator
Mini TRX+ Timecode Generator
Mini TRX+ Timecode Generator
Mini TRX+ Timecode Generator

Mini TRX+ Timecode Generator

402,90 € *

zzgl. Umsatzsteuer zzgl. Versandkosten

lagernd, Lieferzeit je nach Versandart 1-3 Werktage

Timecode Systems - MiniTRX+ Super compact and incredibly versatile, the :mini trx+ timecode... mehr

Timecode Systems - MiniTRX+

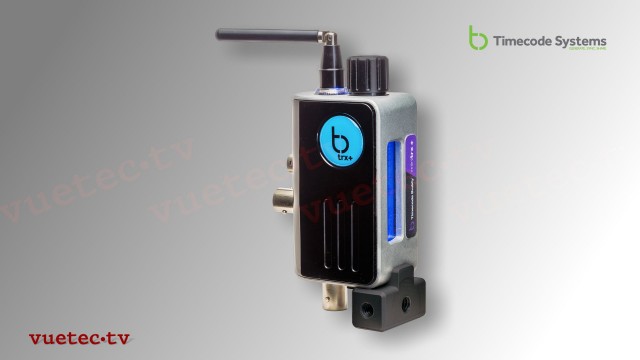

Super compact and incredibly versatile, the :mini trx+ timecode generator works just as well on a DSLR as a more traditional large scale film and broadcast camera.

Features

  • Ultra compact and lightweight
  • Highly accurate and stable generator
  • Long range RF transceiver
  • B:LINK protocol enabled

A simple, cost-efficient multi-camera sync solution
Small and offering multiple mounting options, the :mini trx+ is suitable for use on everything from a large-scale film camera to a DSLR. It’s the perfect timecode partner to a :wave or :pulse on a multi-camera shoot.
The :minitrx+ is the smallest timecode, genlock and word clock generator on the market, but it’s not just its proportions that make it stand out. As a BLINK enabled device, when used in combination with a :pulse or :wave, you can remotely view, monitor and control multiple :minitrx+ units from any smartphone, tablet or computer, making it a great solution for multi-camera shoots.

Ultra compact and lightweight
Measuring just 29mm x 44mm x 70mm and weighing only 138g, the :minitrx+ is perfectly proportioned to attach to any camera.
In addition, an aluminium anodised bracket connector block with multiple quarter-inch threaded mounting holes and a detachable hot-shoe mount allows for a solid and flexible mounting solution.

Enhanced features

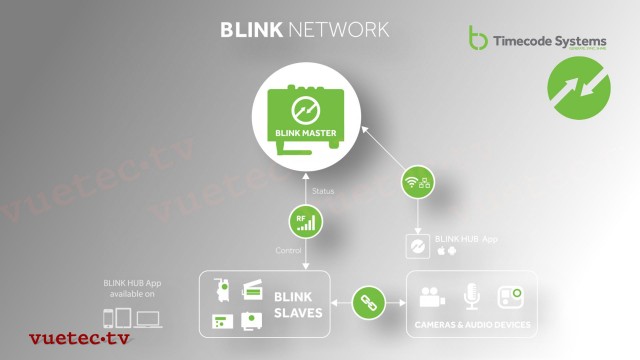

Synchronisation between units is via BLINK RF – a wireless long-range sync, control and metadata exchange protocol operating in the uncongested range of 865MHz to 923MHz. This ensures complete reliability, wherever you are, and zero drift between units even on a long and complicated shoot day.
Use the :minitrx+ in conjunction with a :wave or :pulse to connect to the BLINK Hub app production dashboard. This unlocks the advanced capability to view, monitor and control multiple :minitrx+ units centrally from any smartphone (iOS or Android), tablet or computer.

Funktion: Timecode Generator + Transceiver
Bauform: Mini Converter
Antennen: 1x extern
Inputs: Video Sync (BB)
Outputs: Timecode
Power: 12 V DC
Standards: 60 / 50 Hz
Steuerung: App , App :BLINK, lokal
Technical Specs: Timecode generator accuracy: 0.2 ppm TCXO reference oscillator (less... Technische Daten

Technical Specs:

Timecode generator accuracy: 0.2 ppm TCXO reference oscillator (less than one half frame drift a day)
External Power 5V USB or Hirose power source
Internal Power Li-Polymer rechargeable battery, 10-12 hours min operation, 2 hours charge
T/C input BNC connector
T/C outputs BNC connectors (selectable standard or mic level)
Supported FPS modes 23.98, 24, 25, 29.97, 30, 29.97DF, 30DF
Output sync modes PAL, NTSC, 720p, 720p double frame, 1080i, 1080p, 1080p double frame, Word Clock 44.1, 48.2, 48, 96, 192 KHz
Output Video Sync 1V pp / 75 ohm or 1V pp /37.5ohm for ‘High Level Genlock’ mode (3D camera rigs)
Display 2 line, 16 character, blue variable brightness backlit display
Antenna Light Pipe Bi-colour LED (Green/Red)
Frequency

865MHz-923MHz, Worldwide ISM bands

Wired connectivity Ethernet, USB, UART, RS232, RS422, LANC
Dimensions 29 x 44 x 70 mm
Weight 138 g
Eigenschaften: "Mini TRX+ Timecode Generator"
Funktion: Timecode Generator + Transceiver
Bauform: Mini Converter
Antennen: 1x extern
Inputs: Video Sync (BB)
Outputs: Timecode
Power: 12 V DC
Standards: 60 / 50 Hz
Steuerung: App , App :BLINK, lokal

Timecode Systems ist ein britscher Hersteller von Geräten und Systemen zur synchronen Verkopplung von verschiedenen Audio-, Video- und Datengeräten für die Bereiche Broadcast, Produktion, Film, Live-Performance und mehr durch standardisierten Timecode. Er ist spezialisiert auf das Design und die Herstellung von praxisorientierten Produkten, unter Verwendung modernster Technologie mit höchster Zuverlässigkeit. Zu den Highlights gehören drahtlose Generatoren und Synchronizer.

vuetec.tv UG fungiert als exklusiver Vertrieb für den deutschsprachigen Raum.
