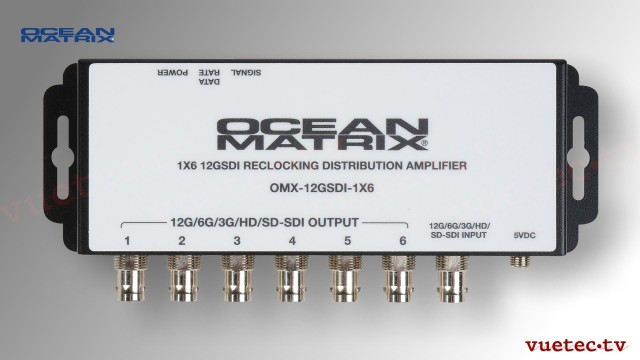

Distribution Amplifier 12G-1x6 - 12G-SDI zu 6x 12G-SDI, reclocked

329,00 € *1

zzgl. Umsatzsteuer zzgl. Versandkosten

Nicht am Lager! Ware wird nachbestellt. Zulieferung je nach Verfügbarkeit beim Hersteller ca. 5-30 Werktage.

  • OM-12G1x6
  • OMX-12GSDI-1X6
  • 1,00 kg
12GSDI Verteil Verstärker - Ocean Matrix 12G 1x6 The Ocean Matrix OMX-12GSDI-1X6 is a low... mehr

12GSDI Verteil Verstärker - Ocean Matrix 12G 1x6

The Ocean Matrix OMX-12GSDI-1X6 is a low cost, stand-alone 1x6 reclocking distribution amplifier for signals up to 12G-SDI UHD. Input any signal, whether it's SDI, 3G-SDI or even 12G-SDI, and feed six pristine reclocked outputs to devices across your facility. The OMX-12GSDI-1X6 utilizes automatic input cable equalization able to drive SD signals up to 1000 feet and 12G-SDI signals to 150 feet on broadcast grade RG6 cable.

Supports DVB-ASI protocols at 270Mbps as well as SMPTE 259M, 292M, 344M, 424M, 425M, ST2081 and ST2082. A road tough full metal enclosure ensures high quality performance in all outside broadcast and studio facility applications.

Features:

  • Supports all SMPTE video formats for HD and UHDTV broadcast requirements
  • Six separately buffered and reclocked outputs
  • Cable equalization and signal retiming
  • LED indicators for signal input lock and rate
  • Passes all ancillary data
  • Automatic input type detection
  • Additional distance can be achieved using Belden 4794R 12G SDI Coax
  • Reclocking SDI signals for cascading and longer transmission
  • Inter-locked power supply
  • Supports 2K and 4K SDI transmission
  • Universal Mounting Flanges

Specifications:

  • 12G/6G/3G/HD/SD distribution
  • Automatic input cable equalization up to 1000ft@SD, 500ft@HD, 300ft@3G, and 150ft@12G
  • Supported formats: DVB-ASI at 270Mbps, SMPTE 259M, SMPTE 292M, SMPTE 344M, SMPTE 424M, SMPTE425M, SMPTE ST2081, SMPTE ST2082
  • Audio Support
  • Data Rates: 1.485 / 2.97 / 5.96 / 11.88 Gbps
  • Video Bandwidth: 11.868/11.88Gbps
  • Input/Output: SDI (BNC - 75Ω)
  • Power Consumption: 5W
  • Dimensions: 8x2.75x1in / 203x6.99x25.4mm with flanges
  • Weight: 1 lb / 0.45 kg

Item Includes:

  • 5V/2A Power Supply



Funktion: Verteiler 1x6
Bauform: Mini Converter
Inputs: SDI
Outputs: SDI
Anschluß: BNC 75 Ohms
Power: 5 V DC
Standards: 2Kp, 2Kpsf, 4K, 4Kp, 720p, 1080i, 1080p, 1080psf, SD
Eigenschaften: "Distribution Amplifier 12G-1x6 - 12G-SDI zu 6x 12G-SDI, reclocked"
Funktion: Verteiler 1x6
Bauform: Mini Converter
Inputs: SDI
Outputs: SDI
Anschluß: BNC 75 Ohms
Power: 5 V DC
Standards: 2Kp, 2Kpsf, 4K, 4Kp, 720p, 1080i, 1080p, 1080psf, SD

OCEAN MATRIX ist eine Division der Tower Products Incorporated, New Jersey, USA, und spezialisiert auf die Entwicklung und Herstellung von praktischen Hilfsmitteln für die professionelle und semi-professionelle AV-Technik.

Zum umfangreichen Lieferprogramm gehören Trenntrafos, Kleingeräte zur Übertragung und Signalanpassung.

vuetec.tv UG importiert die OCEAN MATRIX Produkte exklusiv und vertreibt sie im europäischen Raum.
