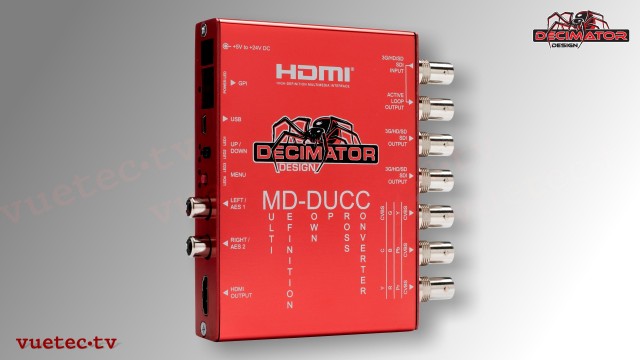

Decimator MD-DUCC Up-/DownConverter

415,00 € *1

zzgl. Umsatzsteuer zzgl. Versandkosten

lagernd. Lieferzeit je nach Versandart 1-3 Werktage

  • DD-MDDUC
  • MD-DUCC
  • 1,00 kg
Decimator (Redbyte) Design - MD-DUCC Multi-Definition Down Up Cross Converter... mehr

Decimator (Redbyte) Design - MD-DUCC

  • Multi-Definition Down Up Cross Converter

(3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs

FEATURES:

  • The audio source for all 4 stereo pairs in the HDMI output can be selected from the 8 stereo pairs available in the SDI input
  • When scaling is enabled, the audio source for all 8 stereo pairs in the SDI output can be selected from the 8 stereo pairs available in the SDI input
  • Auto detects 3G, HD or SD (26 Formats in total)
  • Full 10-bit data path and multipoint interpolation
  • Professional motion-adaptive de-interlacing
  • True Down Up Cross conversion, allowing the conversion between any of the supported formats. Simply select the output format you require, no matter what the input format is
  • Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with individual selection for HD to HD, HD to SD, SD to HD and SD to SD conversions
  • Full 16-Channel Audio metering with:

         - Any of the 4 audio groups individually selectable
         - Vertical or Horizontal Bars
         - AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
         - Bar & Float, Bar only or Float only
         - Transparency adjustment
         - Separate Bar and Float Ballistics control
         - Adjustable Reference level
         - Red, Yellow and Green Range adjustment
         - Bar thickness adjustment
         - Margin adjustment

  • Adjustable Graticules Generator with:

         - Separate enables for Safe Action, Safe Title and Centre Cross
         - Adjustable position for either Safe Action or Safe Title
         - Adjustable colours for Safe Action, Safe Title and Centre Cross

  • Text Overlays with:

         - Adjustable Foreground and Background colours
         - Adjustable 16 character text
         - Current input format status

  • • HDMI output
  • • Selectable analogue video output from:

         - 3 x CVBS out
         - YPbPr out
         - RGB out
         - CVBS & YC out

  • 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
  • GPI on RJ-45 for Tallies
  • 3G/HD/SD-SDI Active Loop-Through Output
  • De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
  • LEDs for status and buttons for basic configuration
  • USB port for control and firmware updates
  • Locking DC Power Socket
  • The following is also included with the unit: Power Supply, HDMI Cable, USB Cable and Mounting Bracket
Funktion: De-/Embedder, SDI zu Analog Video, SDI zu HDMI
Bauform: Mini-Converter
Inputs: SDI
Outputs: Audio analog, HDMI, SDI, Video analog
Anschluß: BNC 75 Ohms, HDMI-A, RCA Cinch
Power: 5 ~ 32 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD
Technical Specification VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s •... Technische Daten

Technical Specification

VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s
• 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
• 625i50
• 525i59.94
INPUTS • (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
OUTPUTS • HDMI
• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x (3G/HD/SD)-SDI 10-bit Outputs
• (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
• AES 1 / Unbalanced Analogue Audio - Left
• AES 2 / Unbalanced Analogue Audio - Right
CONTROLS • HDMI format type
• Analogue Video format type
• Output format
• Aspect conversion type for HD to HD, HD to SD, SD to HD and SD to SD conversions.
• On-Screen Overlays Enables
• Basic Audio Meter control
• Basic Graticule Enables
LED STATUS • Power
• Signal Lock
POWER • +5V to +24V DC, ~5 Watts
• Positive Centre Pin
DIMENSIONS 90mm x 123mm x 23mm
Eigenschaften: "Decimator MD-DUCC Up-/DownConverter"
Funktion: De-/Embedder, SDI zu Analog Video, SDI zu HDMI
Bauform: Mini-Converter
Inputs: SDI
Outputs: Audio analog, HDMI, SDI, Video analog
Anschluß: BNC 75 Ohms, HDMI-A, RCA Cinch
Power: 5 ~ 32 V DC
Standards: 60 / 50 / 30 / 25 / 24 Hz, 720p, 1080i, 1080p, 1080psf, SD

Decimator Design PYT LTD mit Basis Australien ist ein seit Jahren im Broadcast Markt bekannter Entwickler und Hersteller von kostengünstigen und leistungsstarken Signalwandlern. Cross-, Up- und Down-Konversion aber auch MultiView Processing sind die Key-Technologien der Australier.
